PRODUCTS
,

IP68 Weatherproof Enclosure


Primmcon's IP68-rated enclosures offer all-in-one protection and power for Ethernet equipment in harsh outdoor environments. It features an integrated PoE solution and is fully customizable to fit specific project needs. Our enclosures ensure consistent quality, quick turnaround, and seamless OEM/ODM support

Home  >  Products  >   IP68 Weatherproof Enclosure

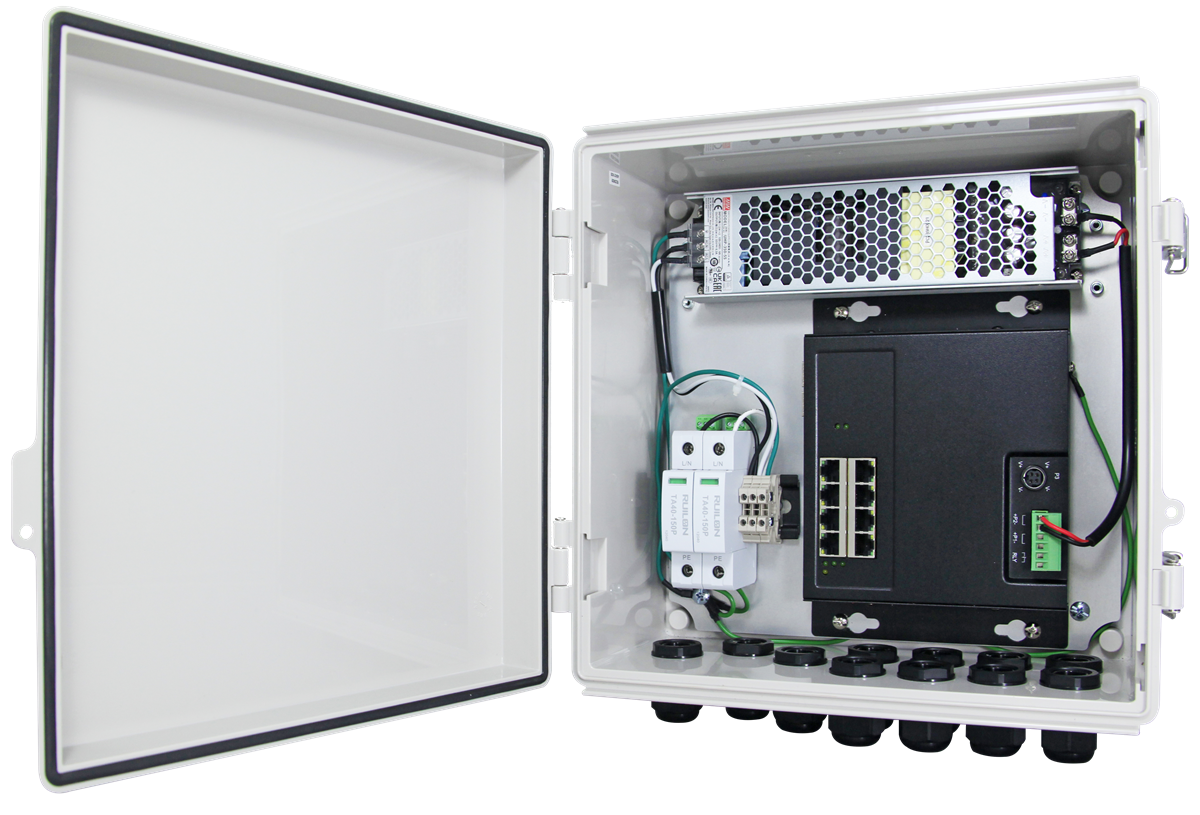

WP3040 Series - Industrial IP68 Weatherproof Cabinet

The WP3040 Series is a rugged, turnkey outdoor enclosure solution designed to protect industrial PoE devices in extreme environments. Engineered with IP68-rated and IK10 impact-resistant housing, it comes equipped with an integrated 200W power supply and 20kA surge protection, making it ideal for surveillance, networking, and remote infrastructure applications.

What sets the WP3040 apart is its high level of customization—from size, layout, and internal configuration to material selection and component integration. Whether you need a compact box for tight spaces or enhanced power delivery for high-load systems, Primmcon can tailor the enclosure to your exact needs. Power supplies can be upgraded to higher output models, and internal components can be adapted for different use cases.

⚠️ Note: Switch not included. Compatible flat PoE switch models (e.g., H8050X, H8042XF) are available separately (DIN-Rail form factor also compatible.) Contact sales for switch selection, accessories, and further information



Key Features

  • Fully Customizable Enclosure Design
    Options for different sizes, materials, port layouts, and use cases—designed to fit your application.
  • Integrated Power & Surge Protection
    Standardized solution comes with 200W (55V DC, 3.6A) output and 20kA surge protection; upgradeable power models available.
  • IP68 & IK10 Rated Protection
    Resistant to water, dust, impact, and extreme weather conditions.
  • Wide Operating Temperature
    Stable performance from -30°C to +70°C, suitable for outdoor and industrial deployments.
  • Flexible Mounting Options
    Wall mount by default; optional pole mounting and DIN-rail support via L-bracket.
  • UL 62368-1 Safety Certified
    The standardized system is certified to UL 62368-1, the system ensures safe, high-quality performance yet can trust in industrial environments.


Looking for a tailored solution?
Connect with our sales team to discuss your specific enclosure needs—custom sizes, layouts, and component configurations available to match your project requirements.

Contact Info:

Mr. Andrew Tseng – andrew.tseng@primmcon.com
