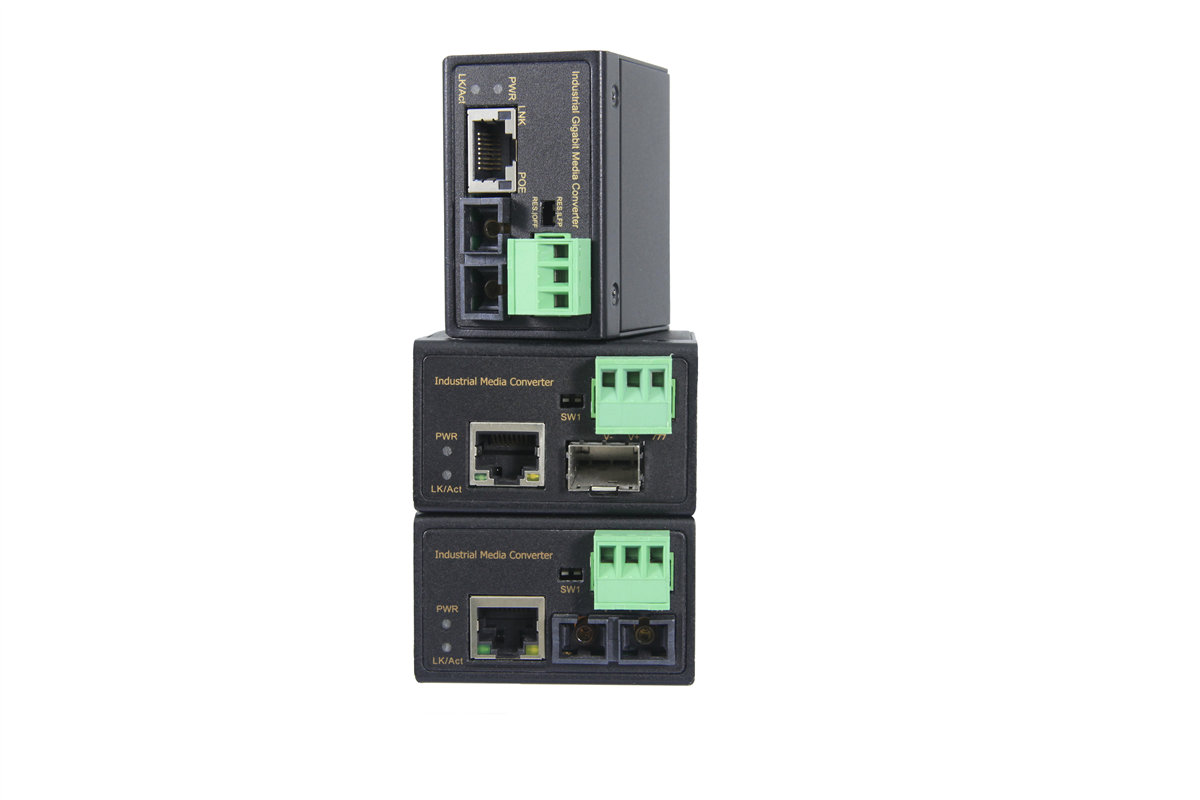

Industrial Media Converters
Primmcon’s Industrial Media Converter Series offers robust, high-performance copper-to-fiber connectivity for industrial, transportation, and surveillance networks—available in both PoE and non-PoE models to suit diverse power and deployment requirements.
Supporting data speeds from Fast Ethernet up to 10G, our lineup includes compact and rugged solutions built for space-constrained environments. Models feature PoE outputs up to 90W (IEEE 802.3bt) and PoH 95W, along with intelligent features like Link Fault Pass-Through (LFP) and PD Off-site Reboot (PDOR) for enhanced uptime and remote manageability.
Designed with the smallest enclosure footprint in the market, and equipped with SC, SFP, and WDM fiber interface options, Primmcon converters deliver industrial-grade performance in the most challenging conditions.
Key Features
-
PoE and Non-PoE Options
Choose from full-featured PoE models or data-only versions to match your application -
Ultra-Compact Rugged Design
Industry-leading mini housings (as small as 59 x 36 x 49 mm) for tight-space installations -
Flexible Fiber Connectivity
SC, SFP, and WDM interfaces; transmission distances up to 30 km -
High Power Support
IEEE 802.3af/at/bt and PoH-compliant models deliver up to 90W per port -
Smart Functions
Integrated LFP and PDOR features for link monitoring and remote device reboot -
High-Speed Performance
Supports Fast Ethernet, Gigabit, 2.5G, and 10G transmission -
Versatile Power Input
Models support 12–56VDC, 18–36VAC, or integrated AC/DC input -
Built for Harsh Environments
Operating temperature from -40°C to +75°C; IP30/IP40-rated enclosures -
Global Certification
CE, FCC, UL/EN 62368-1, IEC 61000 EMI/EMS
Need a compact, high-power, or non-PoE media converter for your industrial network?
Get in touch with our sales team to find the ideal model for your fiber and power requirements.
Contact Info:
Mr. Andrew Tseng - andrew.tseng@primmcon.com
