PRODUCTS

DIN Rail Unmanaged Switches

Primmcon’s unmanaged hardened industrial switches are unbeatable and are where Primmcon shines. With various PoE standards supported and more than enough options, Primmcon’s unmanaged industrial line will surely carry the options you need
  • PoE Standards supported:
    • 15W 802.3af
    • 30W 802.3at
    • 60W 802.3bt
    • 90W 802.3bt
    • 60W uPOE
    • 60W 4P-PoE
  • 2kV PoE surge protection
  • ColdDesign Technology
  • Silent Operation: Primmcon’s products are will operate smoothly and silently
  • Redundant Power and alarm notification upon power failure
  • Overload Protection
  • Tertiary 3rd power DIN for VAC power input
  • EN50155, UL60950-1, and many other certifications to fit your project needs
  • Voltage Boosters: 12-56VDC input for 56VDC PoE output is available on various models
  • PoE+ minimum: None of Primmcon’s products provide only 802.3af 15W PoE. All of Primmcon’s products start at 802.3at 30W PoE. Minimum, no questions asked.

Home  >  Products  >   DIN Rail Unmanaged Switches  >  H8030/H8031F Series

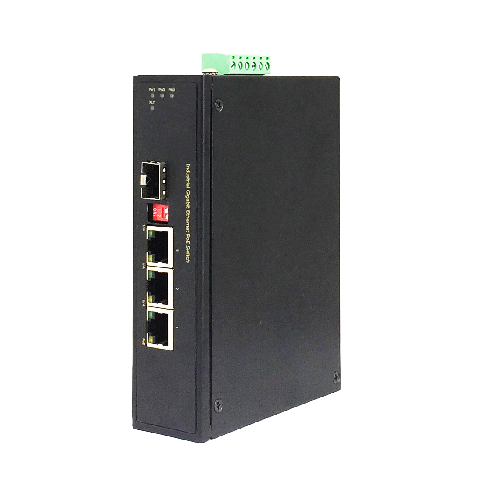

H8030/H8031F Series

Our premier multi-option series, with dozens of combinations to perfectly suit the project you need.
  • Certified for CE/FCC/VCCI/EN60068 (shock, vibration, freefall)/LVD
  • All ports 1000M Gigabit, with 10/100/1000M auto detection
  • Integrated DIP Switch for selectable 100/1000M SFP speed
  • 30W PoE+ or 60W ultra high PoE options available
  • 1xPoE or 2xPoE options
  • Standard 48-56VDC or wide range 24-56VDC input available
  • Built-in power DIN for tertiary 110/240VAC environment power
  • 6kV surge protection available
  • Built-in hardened Marvell IC
  • Built-in hardened PoE controller
  • Redundant power support
  • Alarm relay support
  • Multiple data ports for easy cascading
  • Works in extreme environments -40ºC to 75ºC
