PRODUCTS

DIN Rail Unmanaged Switches

Primmcon’s unmanaged hardened industrial switches are unbeatable and are where Primmcon shines. With various PoE standards supported and more than enough options, Primmcon’s unmanaged industrial line will surely carry the options you need
  • PoE Standards supported:
    • 15W 802.3af
    • 30W 802.3at
    • 60W 802.3bt
    • 90W 802.3bt
    • 60W uPOE
    • 60W 4P-PoE
  • 2kV PoE surge protection
  • ColdDesign Technology
  • Silent Operation: Primmcon’s products are will operate smoothly and silently
  • Redundant Power and alarm notification upon power failure
  • Overload Protection
  • Tertiary 3rd power DIN for VAC power input
  • EN50155, UL60950-1, and many other certifications to fit your project needs
  • Voltage Boosters: 12-56VDC input for 56VDC PoE output is available on various models
  • PoE+ minimum: None of Primmcon’s products provide only 802.3af 15W PoE. All of Primmcon’s products start at 802.3at 30W PoE. Minimum, no questions asked.

Home  >  Products  >   DIN Rail Unmanaged Switches  >  4+2 port series

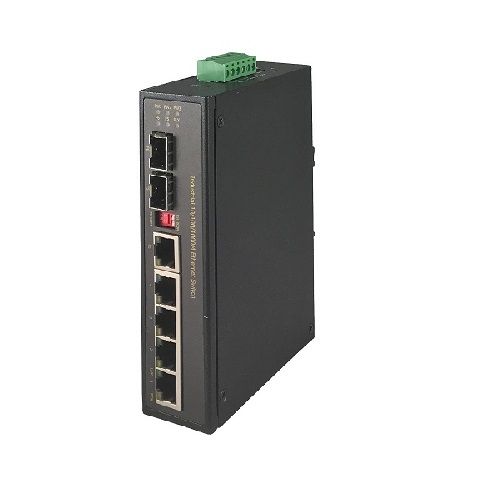

4+2 port series

Our flagship 4+2 port series is certified from proprietary CE/FCC/VCCI/EN60068 (shock, vibration, freefall)/LVD to UL60950-1 and EN50155.
  • Supports standards from 802.3af/at PoE+ all the way to 60W ultra-high PoE and 90W 802.3bt
  • All ports 1000M Gigabit, with 10/100/1000M auto detection
  • Integrated DIP Switch for selectable 100/1000M SFP speed
  • Standard 48-56VDC or wide range 12-56VDC input available
  • Built-in power DIN for tertiary 110/240VAC environment power
  • Built-in proprietary 2kV surge protection
  • Built-in hardened Marvell IC
  • Built-in hardened PoE controller
  • Redundant power support
  • Alarm relay support
  • Built-in proprietary 2kV surge protection
  • PoE+ ports double as data ports for easy cascading
  • Multiple fiber and data ports for easy cascading
  • Works in extreme environments -40ºC to 75ºC
