DIN Rail PoE Injectors

Primmcon’s hardened industrial PoE Injectors are pioneers of PoE technology. From 802.3at to 802.3bt and PoH, Primmcon’s PoE Injector line will indubitably carry the PoE technology you need
  • PoE Standards supported:
    • 15W 802.3af
    • 30W 802.3at
    • 60W 802.3bt
    • 90W 802.3bt
    • 60W uPOE
    • 60W 4P-PoE
    • 95W 4P-PoE
    • 95W PoH
  • 2kV PoE surge protection
  • ColdDesign Technology
  • Silent Operation: Primmcon’s products are will operate smoothly and silently
  • Redundant Power
  • Overload Protection
  • Voltage Boosters: 12-56VDC input for 56VDC PoE output is available on all models
  • PoE+ minimum: None of Primmcon’s products provide only 802.3af 15W PoE. All of Primmcon’s products start at 802.3at 30W PoE. Minimum, no questions asked.
  • 802.3bt PoE: Since ratification in Q3 2018, Primmcon has already released a full line of 802.3bt PoE injectors

Home  >  Products  >   DIN Rail PoE Injectors  >  HI8011 Series

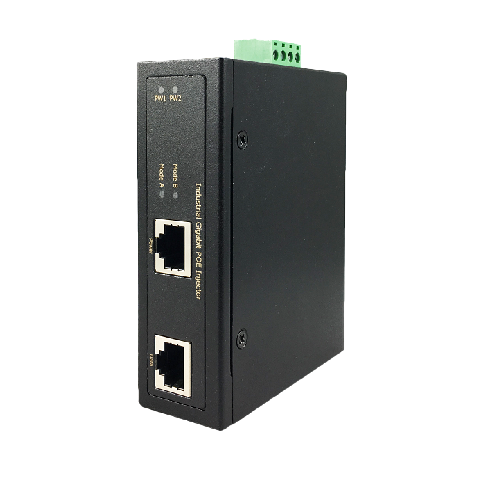

HI8011 Series

Our flagship industrial PoE injectors are certified from proprietary CE/FCC/VCCI/EN60068 (shock, vibration, freefall)/LVD to UL60950-1 and EN50155.PoE power injection for 802.3af/at PoE, 60W/95W ultra-high PoE, 95W PoH or 60-90W 802.3bt PoE
  • All ports 1000M Gigabit, with 10/100/1000M auto detection
  • Multi-gig 1/2.5/5/10G option available
  • Integrated DIP Switch for PoE power options
  • Standard 48-56VDC or wide range 12-56VDC input available
  • Built-in hardened PoE controller
  • Redundant power support
  • Built-in proprietary 2kV surge protection
  • Rugged Aluminum housing for maximum heat dissipation
  • Works in extreme environments -40ºC to 75ºC
